Mygica VGA, Laptop, Mac, Computer to TV Presentation Converter, Converts VGA to Video, RCA Composite, S-Video and VGA - Convert you PC to a TV - Supports Resolution up to 1280 X 1024

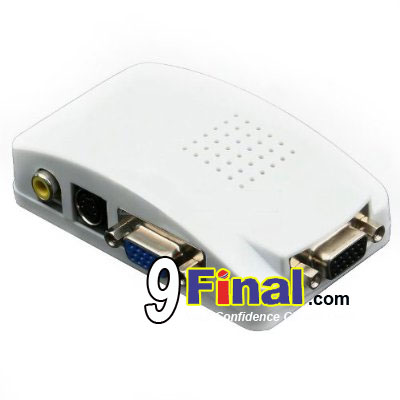

 | UMAX (PCTV series 1) is a handed-size universal VGA to TV, HDTV, Plasma
TV converter box. It supports resolution up to 1280 x 1024. Compact size, Po-
wer from USB/PS2 port, easy to carry. It is the best for PC GAME, PC DVD,
Internet viewing on TV, Entertainment, Education and Presentation.
|
•ÿ Support Composite VIDEO, S-VIDEO, RGB (Optional) output .
ÿ •ÿ Power from PS/2 or USB port.
ÿ •ÿ On Screen Display (OSD) operation status, Zoom, Size.
ÿ •ÿ Independent Horizontal Size and Vertical Size adjustment, programmable 2D scaling.
ÿ •ÿ Pure hardware design, just Plug & Display. No software driver requirement, compatible with any operation ÿÿÿÿÿsystem.
ÿ •ÿ Switch able NTSC, NTSC-EIAJ (for Japan), PAL, PAL-M, PAL-N, PAL-combination-N and SECAM (via RGB ÿÿÿÿÿÿOUT) video system.
ÿ •ÿ RGB (OPTION CABLE NEEDED) output supports the interlace format.

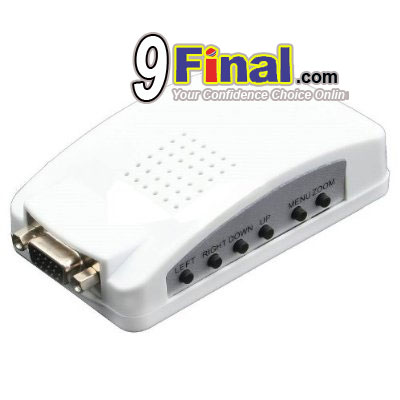

ÿ •ÿ Supports Position control, ZOOM & MENU button.
ÿ •ÿ MENU button supports HSIZE, VSIZE, BRIGHTNESS, CONTRAST, HUE, SATURATION, SHARPNESS and ÿ•ÿ OSD BACKGROUND color adjustment.
ÿ •ÿ Simultaneous display on VGA monitor and TV.
ÿ •ÿ Compact form factor: 95mm(L) x55mm(W)x30mm(H)
ÿ •ÿ 24 bit, true color digitizer. |
•ÿ Entertainment - play VCD & DVD movies on TV. Experience PC games on TV.
ÿ •ÿ Presentations - Ideal for both classrooms and conference rooms.
ÿ •ÿ Documentation - Capture PC images on videotape.
ÿ •ÿ Training - Easy software training via video tape
This converter supports the following VGA display modes | Resolution | 640 x 480 | 800 x 600 | 1280 x 1024 | Vertical Frequency(Hz) | 60,72, 75,85 | 56,60,72,75,85 | 60,70,72,75 | ZOOM function supports the following VGA display modes | Resolution | 640 x 480 | 800 x 600 | 1280 x 1024 | Vertical Frequency (Hz) | 60,72, 75,85 | 56,60,72,75 | 60 | SIZE function supports the following VGA display modes for NTSC, NTSC-EIAJ (for Japan), PAL-M | Resolution | 640 x 480 | 800 x 600 | 1280 x 1024 | Vertical Frequency(Hz) | 60,72, 75,85 | 60,72,75 | 60,70,72,75 | SIZE function supports the following VGA display modes for PAL, PAL-N, PAL-combination-N and SECAM | Resolution | 800 x 600 | 1024 x 768 | ÿ | Vertical Frequency(Hz) | 56,60,72,75 | 60,70,72,75 | ÿ | This converter supports the following MAC display modes | Resolution | 640 x 480 | 832 x 624 | ÿ | Vertical Frequency(Hz) | 66 | 75 | ÿ |
System Requirement
ÿ•ÿ Desktop or Notebook PC compatible with IBM PC or MACINTOSH PC.
ÿ •ÿ TV or VCR which supports NTSC or PAL video standard with composite video input S-Video input, RGB ÿÿÿÿÿÿvideo input or SCART input connector
