| >All-in-One Analog & Digital Video Capture/
>Editing Card
>Real-Time Converting Analog Video into Digital
>Video
>The Easiest Way to Connect All Video Device
>with PC |
| |

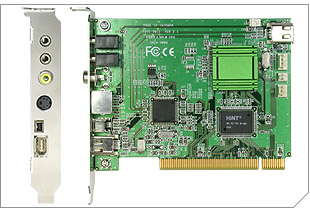

| The ADVE-9011HE is an innovation solution
available now for all video users to capture and edit from either
DV/D8 camcorders or analog video devices, such as Hi8/V8/VCR/TV/DVD,
digitize and archive existing precious, memorial video contents.

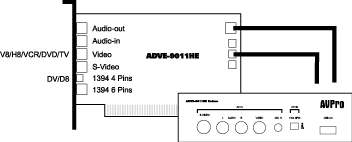

The ADVE-9011HE is truly an innovative one-card-for-all design
to comprise one Composite (RCA) analog video input port, one S-Video
(Y/C) analog video input port, two 1394 digital input/output ports
and one pair of audio in/out port to meet all the comprehensive
requirements that users may demand. Its plug-and-play and easy-to-use
design helps users simply focus on & enjoy their work rather
than hardware puzzles. With its advanced and open architecture,
users will be able to use any preferred video editing software
to edit, encode and convert their video contents into AVI, DV-AVI,
MPEG1/2, VCD/SVCD/DVD formats, or save on DV/D8 tapes, or convert
into streaming format for internet application. With
our brand new technology which tightly integrates the AD FullCap
application with ADVE-9011HE hardware platform, users can directly
capture analog video into DV format (DV-AVI) in real-time (1:1
time needed). This feature brings users benefits, such as less
file size, easy-to-edit and saving Hi8/V8/VCR/TV video contents
into DV/D8. Hi8/V8/VCR users will never worry about their video
contents cannot be played back if their old analog devices break
down some day.

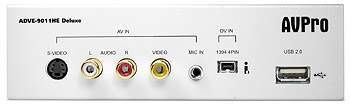

Best yet, in order to provide an easy way
to connect all video devices to PC while working on precious,
memorial movies production, we offer an optional 5 1/4" form
factored, well anti-rust processed front panel, modeled as ADVE-9011HE
Deluxe, which comprises one Composite (RCA) analog audio/video
input port, one S-Video (Y/C) analog video input port, one 1394
digital input/output port, one microphone port and one USB2.0
port to connect with other USB devices, like digital camera,
MP3, PDA..etc,.
|
| |

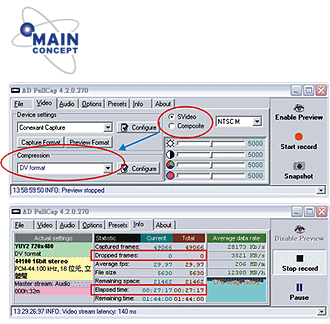

AD FullCap Application*
Real Time from Analog to DV format
With this application and an embedded, superior
quality high speed Main Concept DV-CODEC, co-processing with ADVE-9011HE
platform, users can directly capture full-sized analog video and
convert into DV format in real-time. This captured DV format file
seamless works with other 3rd party applications, both for professional
ones like Adobe PremiereR 6.5, Ulead Media Studio 7, TMPEG applications
or home users level like Ulead Video Studio 7, Intervideo WinDVD
CreatorกKetc. for further editing and encoding purpose.
* For performance & quality consideration,
this application
* supports for Win2000/XP, not for 98/98SE/ME Ulead
VideoStudio™ 7 SE DVD
Movie Making for Everyone
UleadR VideoStudio™ 7 is video-editing
software that makes editing your movies as fun as shooting them.
Use fast, cutting-edge technology that allows first-time users
to easily create professional-looking video. And do it all in
real-time! Share your movies with others on tape, DVD, Video
CD and the Web.
>Capture, Edit and Share your movies - it's all available
in one
>complete package
>Free Video Tutorial - Learn how to make your own movies
with the
>friendly step-by-step tutorial
>Creative & Fun to Use - Guided steps make video creation
simple
>and enjoyable.
There are many new functions from Version 7, especially to mentioned:
-InstaViewR: Real-time Preview and Output to DV
-MultiCutR: Editing with Extract Video
Ulead DVD MovieFactory
2.0 SE
Burn Home Movies onto DVDs or CDs
DVD MovieFactory 2 is unique in consumer
DVD creation category for the most advanced Disc-DirectTMcapture
and disc re-editing technology it features. Users can burn video
directly from a camcorder to a DVD with least effort, then share,
retrieve or re-edit media on the disc. It has many ready-to-go
templates that can be customized to create exciting interactive
scene selection menu. DVD MovieFactory 2 also creates high-quality
digital image slideshows and accepts DVD ROM data, and is perfect
for businesses and home users who want to include documents
and archival media along with DVD videos and slideshows.
Intervideo WinDVD 4.0
With worldwide No 1 playback application,
users can play and watch their remarkable projects with better
display.
|
| |
| |
|
| |
| General
Specification |
1. Compliant
with PCI local bus 2.2 specs
2. 32 bits PCI interface, Plug and Play
3. Support Windows 98SE/ME/2000/XP
4. Support NTSC/PAL/SECAM
5. 30 frames per second video capturing (NTSC)(25fps
for PAL/SECAM)
6. Supported file format: AVI, VCD/SVCD/DVD, MPEG1/2,
DV, Windows Media, RealVideo,..etc
7. FCC & CE regulation |
| Digital
Format Input:(Bracket) |
1. Two
1394 input/output ports to connect with DV/D8, one internal
port to connect with internal device
2. Support IEEE 1394 - 1995 standard and 1394a supplement
3. Support 100, 200 and 400 Mbps transmission rate
4. Single TI 1394 chip solution |
| Analog
Format Input:(Bracket) |
1. Multiple
Composite (RCA) and S-Video (Y/C) inputs
2. One pair of Audio Input/Output (RCA)
3. Multiple YCrCb and RGB pixel formats supported on
output
4. VBI data capture for closed caption data decoding
5. Single video capture chip solution |
| Front
Panel Input: (For Deluxe) |
1. Multiple
Composite (RCA) Audio/Video and S-Video (Y/C) inputs
2. One Microphone jack
3. One 1394 (4 pins) input/output port
4. One USB 2.0 port |
|
|
System Requirement &
Recommended:
1. PCI local bus 2.2 compliant
2. Intel Pentium III (Recommend: Pentium 4)*
3. 128MB RAM
4. Main board with Intel 430FX chipset or higher
5. With overlay VGA card
6. Sound card
7. ATA100 hard disk with 7200RPM
8. DirectX 8.1 or higher
9. Windows 98SE/ME/2000/XP (Recommend: 2000/XP)*
* Upon performance consideration, we suggest
system configuration:
Pentium III or equivalent works with Win2000/XP OS is better,
while Pentium 4 or equivalent with 98SE/Me/2000 XP is fine.
ADVE-9011HE Deluxe Standard Product
Offering
1. One ADVE-9011HE PCI card with driver & installation manual
2. AD FullCap Application Software CD
3. Ulead VideoStudio? 7 SE DVD
4. Ulead DVD Movie Factory 2.0 Software CD
5. Intervideo WinDVD 4 Software CD
6. Cables Sets (1394 4-pins to 4-pins cable * 1, S-video cable
* 1, RCA video cable * 1, 1 to 2 Audio in cable * 1, Audio out
cable * 1)
7. One metal based 5 1/4" front panel bay with cable connect
panel and PCI (1394 6-pins to 6-pins cable * 1, USB 2.0 Type
A to B cable * 1, USB 2.0 cable connect to USB on board *1 pin-to-pin
cables * 4 for Audio & Video)
|
|
