TV BOX

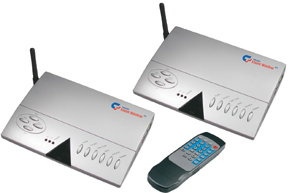

GRAND VISION WIRELESS
( GD-239-1 )
( Tuner Box with 2.4Ghz AV Sender )

Grand Vision Wireless is an external TV Tuner Box with an integrated 2.4GHz Wireless Transmitter & Receiver. It transmits clear video and audio signal of any video source, such as TV or DVD/VCD ,to the wireless receiver at a distance of 100 meters in open area ( 30 meters thru walls or floors ). With the wireless video transmittion, you can watch the TV programs or video image on remote TV or LCD Monitor. Besides, the RF remote controller ( 433MHz ) provided enables you to operate the transmitter for selecting TV channels and video sources and adjusting volume at the remote side. 4 wireless channels available for the best quality selection.

Features
  • Plug and display, no software needed.
  • 2.4 GHz Audio/Video wireless transmitter & receiver.
  • With RF Remote Controller( 433MHz ) provided to control TV channels, video source and volume of the transmitter.
  • Receive broadcast / cable TV signal to 181 channels.
  • Support one of the following TV systems : NTSC, PAL-I, PAL-BG, PAL-DK standard.
  • Built in auto-scan function to search and memorize TV channels.
  • Wireless receiver with outputs for VGA , video and audio signal.
  • Vertical Frequency  :
Vertical Frequency (Hz)System
INPUT
OUTPUT
NTSC
60
60
PAL
50
50
  • Supports 4 selectable channels ( RF Frequency : CH1=2410MHz, CH2=2430MHz, CH3=2450MHz, CH4=2470MHz ).
  • Stereo audio output from sound card or any video device.
  • Receive broadcast / cable TV signal to 181 channel.
  • Input / output :
TX
RX
INPUT
           TV signal
INPUT
           2.4GHz RF signal
           Video signal
OUTPUT
           VGA signal
           Audio signal
           Video signal
OUTPUT
           2.4GHz RF signal
           Audio signal

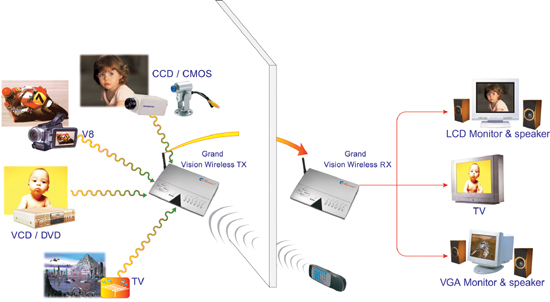

Application
  • Transmit TVกฆs or DVD Playerกฆs Video and Audio signal to any remote TV, LCD monitor, CRT monitor.

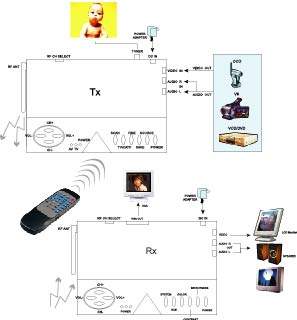

Hardware Connection and Application
